Overview

Basic Info.

Model NO.	G-E215
Refractoriness (℃)	1580< Refractoriness< 1770
Shape	Brick
Type	Refractory Material
Color	White, Brown, Red, Green, Grey
Appearance	Round, Rectangular, Square, Sector, Customized
Strong Points	High Thermal Efficiency, Economical and Practical
Pattern	Planar Corrugated Staggered Three-Dimensional
Property	Gas Cookers and Heaters
Material	Cordierite
Transport Package	Pallet
Specification	CUSTOMIZED
Trademark	Yunnuo
Origin	China
HS Code	8547100000
Production Capacity	500000 PCS/Year

Packaging & Delivery

Package Size50.00cm * 40.00cm * 30.00cm Package Gross Weight10.000kg

Product Description

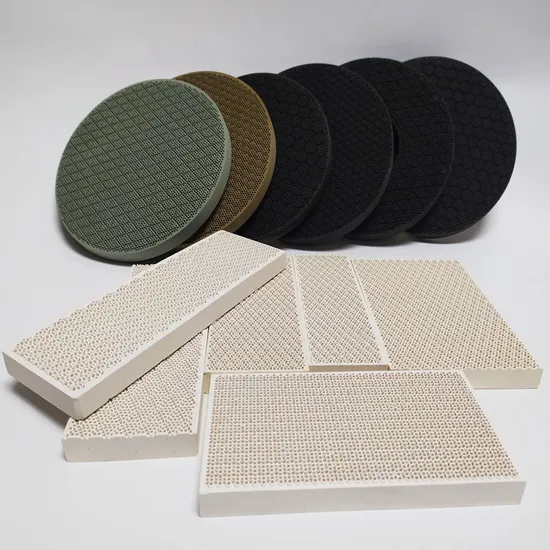

Infrared honeycomb ceramic plate, cordierite burning plate

Product introduction:

Infrared ceramic plates are mainly made of special cordierite materials. Due to the special design of the surface patterns of the ceramic sheets, it is more energy-efficient and effective in the use of gas cookers and heaters.

Performance:

The infrared burner uses honeycomb ceramic plates as the burner head, which is completely premixed with air during combustion to ensure complete combustion, thereby reducing pollutant emissions; during combustion, about 70% of the energy is transferred into infrared rays through radiation. This infrared wave (2-4μm) is most easily absorbed by material molecules and polymers, and has a strong penetrating power, which can stimulate water molecules to resonate, and can evenly penetrate the heat into the core of the heated object to ensure uniform heating effect. It has been widely used in industrial baking paint, ceramics, food, printing and dyeing, etc. various industries and fields.


Application:
Used in grills, gas water heaters, hot stoves, rotary ovens, portable snack carts, cassette stoves, gas heaters, outdoor heaters,drying equipment, etc. Because of the special pattern of the ceramic plate, it is working The oven and heater are more energy-saving and environmentally friendly.

Q1: How can know your quality?
We can send you samples or sample material for you to check or test.Let our physical samples speak loudly.
Q2:Are these samples free of charge?
Some standard small samples are free.If same as your requirements,we will just charge for mould to support.
Q3:If products are not to requirement,how can you do?
We will try our every best to solove it.Meeting your requirement is our mission.
Q4:What's the lead time?
Normally,for standard items,will ship within 1-10 days.For mass production order,we will finish within 30 working days after we receive payment.
Q5:Payment terms:
We can negotiate. Product Description

Item	Data
Material	cordierite
Water absorption	>46%
Open porosity	45%
Specific gravity	0.45-0.65 g/cm3
Thermal efficiency	>68%
Coefficient of expansion	2.0-2.3x10-6
Wall thickness of hole	0.5-1mm
Diameter of hole	1-1.45mm
Thermal shock resistance	Ten times no crack
Seismic pressure	>10 Mpa
Temperature resistance	< 1280C
Surface temperature	1000-1200C
Carbon monoxide release rate	≤0.006%
Nitrogen oxide release rate	≤ 5PPM

Shape	specification
Triangle pattern	164x63x13mm
New diamond pattern	184x63x13mm
Diamond pattern	132x92x13mm
New diamond pattern	135x60x13mm
New diamond pattern	135x47x13mm
8 pattern	145x74x13mm
Recessed plum blossom pattern	200x143x13mm
Diamond pattern	200x145x13mm
Plum blossom pattern	OD 238mm
Plum blossom pattern	OD 200mm
Triangle pattern,black color	OD 158mm,ID 58-64mm,T 13mm
Little Plum Pattern,Dark Green	OD 158mm
Little Plum Pattern,Black	OD 158mm,ID31-38mm,T 14mm
Big triangle pattern,black	OD 158mm,ID31-40mm,T 14mm
Triangle pattern,green	OD 159mm
Little Plum Pattern,Black,with edge	OD 158mm,ID31-38mm,T 14mm
Big triangle pattern,black	OD 149mm,ID 30mm,T 14mm
Round hole pattern,plain plate,black	OD 149mm,ID 31mm,T 12mm
Remarks:for others,we can produce. Color in black,red,green,grey ect.
